Specifications

• Patented design crushes, cleans, separates, and screens to reclaim valuable metals from slag, dross, salt cake, skimmings, spillage, and pot liner.
• Rotary tumble action provides excellent slag & dross reduction and separation for cleaner metallics and a cleaner melt.
• Positive crushing action with patented crushing roller to break down very hard lumps, yielding higher output.
• Dynamic Suspension System directs the energy of the crushing roller into the material, not the machine, utilizing an innovative isolation design.

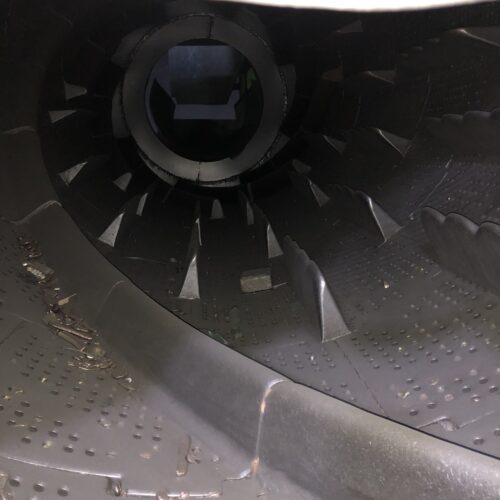

• Attrition chamber utilizes serrated tooth lifters and high tumbling action, separating the slag & dross to liberate.
• Automatic recirculation of screen overs provides additional crushing for higher output.
• Extra Heavy Duty Design for 24/7 continuous operations.
• Precision laser alignment of main support bearings for minimum wear.
• Simple one point hookup of ductwork to supplied flanged opening.
• Automatic discharge of clean metal out the discharge end.
• Very efficient air wash for maximum dust separation.
• Very simple foundation requirements for minimal installation cost.
• Low operating cost with no compressed air or other additional energy sources required.
• Patented segmented cast wear liners provide lower noise, much better wear resistance, and ease of replacement.
• Standard drive components with easy access.
• Variable retention time for various materials to be processed/cleaned.

               *Call for further details.
